Supercharger system for BMW N52B25/B30

Performance Data

• N52B30: From 252/272 HP – 270/300/310/315 Nm to up to 500 HP / 500 Nm*
• N52B25: From 177/204/218 HP – 230/250 Nm to up to 400 HP / 400 Nm*

The “M3-Killer” – Performance enhancement through unique technology!

💡 The system is not Plug & Play – but a modular kit for specialists who know what they are doing. With our ASA supercharger system, you determine the boost pressure yourself – via:

• the diameter of the pulley (incl. 3 sizes: 80 / 100 / 120 mm)
• the supercharger speed
• and possibly other components such as larger water pump, heat exchanger, pistons, connecting rods, etc.

Development & Design

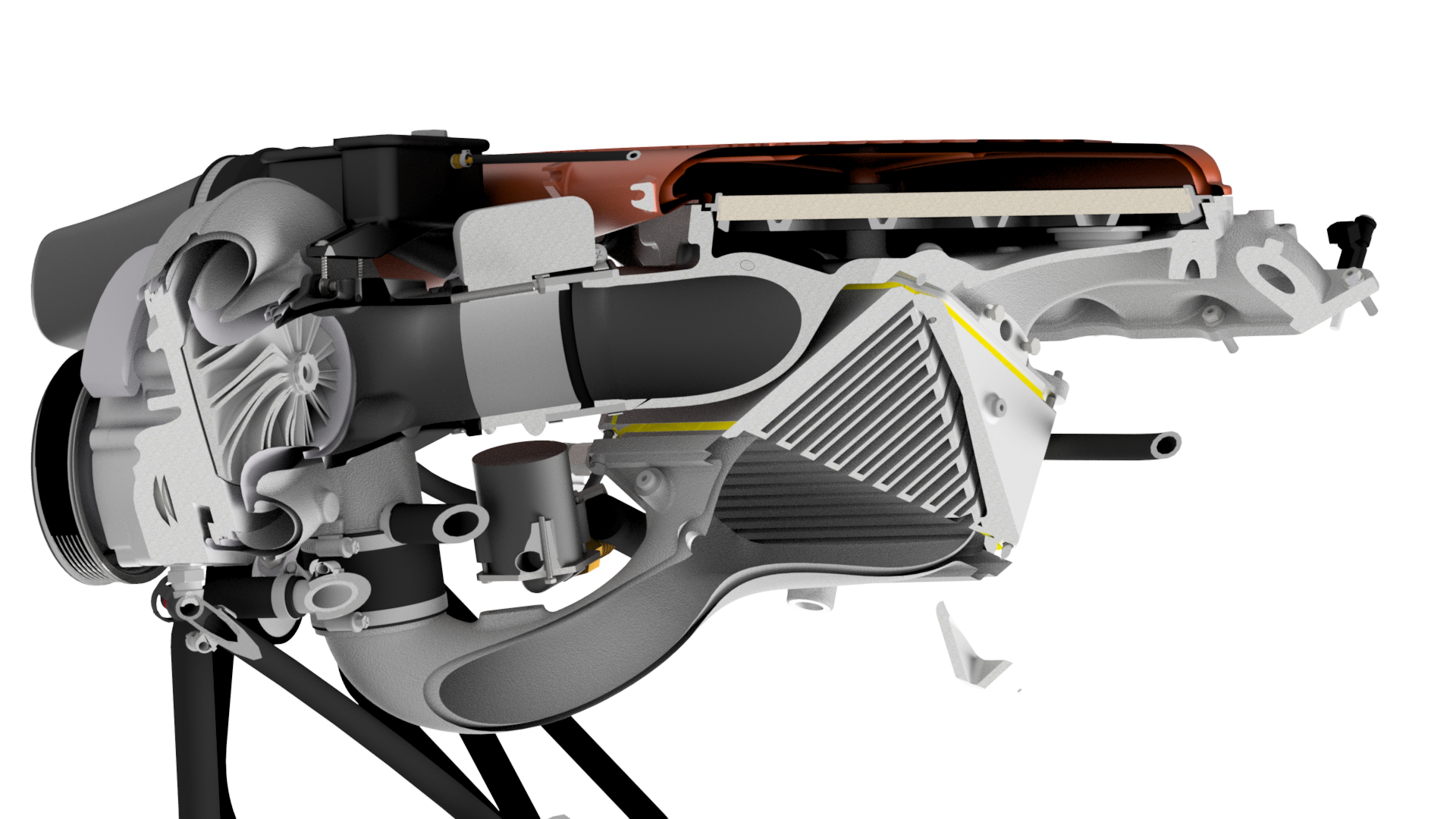

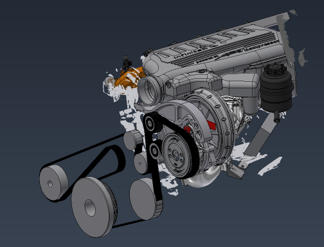

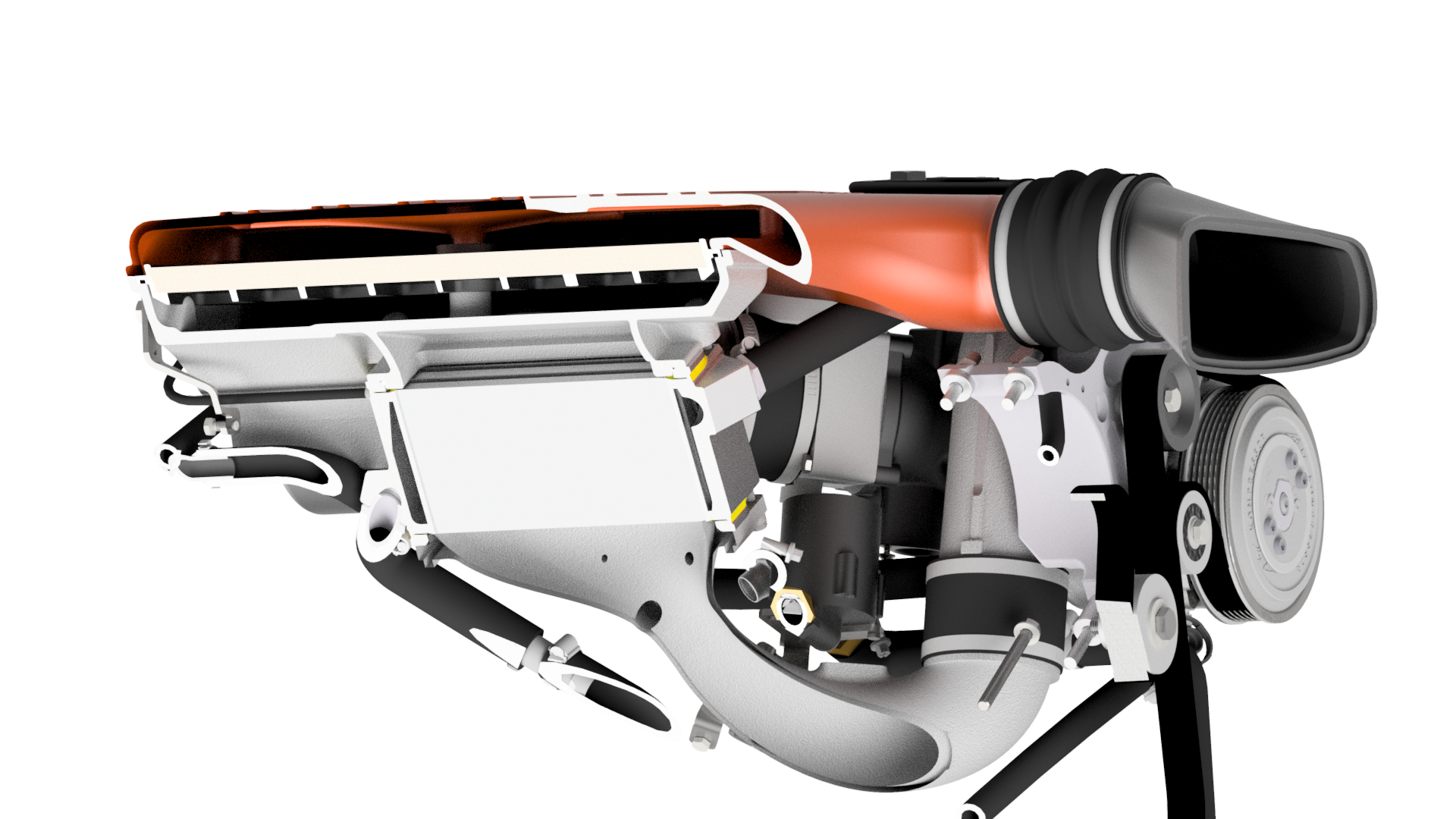

Through reverse engineering, we captured the topography of the engine compartment of a 330i E90 and a 130i & sports air filter and developed the kit completely in CAD. 3D printed parts allowed for precise adaptation to the engine compartment and improved assembly.

The kit includes:

• CNC-milled & turned components
• Cast aluminum parts
• CNC-formed sheet metal and brackets
• Fiber-reinforced polymer components

The standard intake manifold is omitted – our integrated system completely replaces it.
✅ Suitable for all BMW vehicles with N52 engine*

Scope of Delivery (Kit)

• Latest ASA T6-515 supercharger incl. RS-HTS
• Complete belt drive incl. 3 belt lengths & 3 pulleys (80 / 100 / 120 mm)
• Integrated HTS (Hydraulic Torsional Vibration Damper) for harmonious idling
• Highly efficient air ducting
  • Fresh air connection to standard interface to the kidney grille
  • Highly integrated intake manifold with sports air filter & intercooler
• Indirect intercooling with automatically bled water circuit
• Front cooler (counter-cooler) incl. universal mounting material*
• Oil supply: Inlet and outlet lines
• Optional: 6 larger fuel injectors (at extra charge)
• Download link to the complete CAD documentation

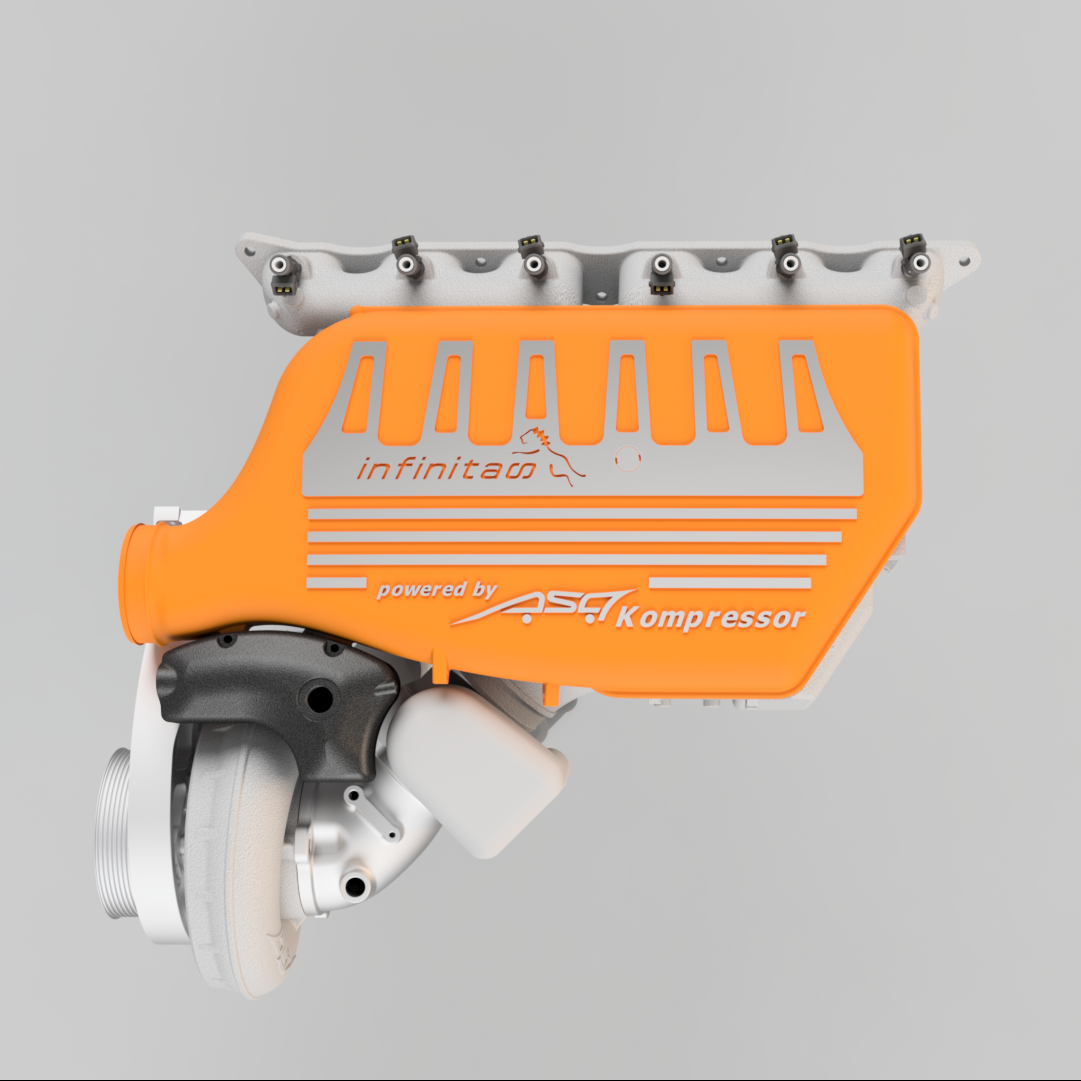

🧩 The air filter cover can be individually designed – your company logo can be inserted as a 3D printed inlay.

M54 and N53 in preparation.

Compatibility Notes*

• Suitable for N52B30 and N52B25
• Please specify displacement when ordering (2.5 or 3.0 l)
• External dimensions remain unchanged,
• E90/91/92 & 130i are ready, other types may require adaptation work in the front area (cooler)

Together with our partners – perhaps soon with you – we are developing further vehicle-specific solutions for the 5 Series (E60, E61), 6 Series (E63, E64), 7 Series (E65, F01), X1, X3, X5 and Z4. Do you own such a vehicle? Then contact us and receive interesting conditions and support as a development partner. Your experience will flow into the development and continuous improvement process (CIP).

For Experts & Professionals

🔧 Do you have a workshop network, experience with forced induction, or are you an ambitious DIY mechanic?

Then you will love this kit: Individually adjustable boost pressure through 3 included pulleys Dm 100/120/140 – make the kit your project!

💼 For dealers, we offer individually tailored kits for resale by arrangement.

👉 End customer price from 6500 EUR --> Inquire about dealer prices now

⚠️ Important Notice

This system is sold as a technical kit.
Installation, TÜV approval, software or control unit adaptation are not included in the scope of delivery and must be carried out by the buyer at their own responsibility or by specialists. We can partially provide ECU basic mappings.

No liability for damage to engine, drivetrain, electronics, or chassis.
